您的高壓軟管專家
我們的業務核心是生產熱塑高壓軟管，內徑3-25mm，工作壓力最高達3,200bar（46,400PSI）
SPIR STAR超高壓軟管適用于多種行業，水清洗技術、超高壓液壓行業、油氣行業以及汽車行業。
軟管的內層材質采用PA、POM、PVDF或PTFE，鋼絲層可以為2-8層的高密度編制層，外層材質采用PA、PUR或PVDF，以滿足不同行業的客戶對不同軟管的需求。
HL和M系列的軟管工作溫度是-30°C to +60°C，PPA系列的工作溫度為-20°C to +80°C，HT系統的工作溫度為-20°C to +150°C，KF系列的工作溫度為-70°C to +200°C
SPIR STAR 特殊系列超高壓軟管:
| 產品代號 | 特殊性 | ||
|---|---|---|---|
| DCI | 雙層外皮 | ||
| H | 加強版 | ||
| HT | 耐高溫 | ||
| K | 耐腐蝕 | ||
| L | 內、外層采用PVDF材質 | ||
| M | 編織層 | ||
| OK | 較柔韌靈活 | ||
| PPA | 用于注甲醇 | ||
| R | 內層為PA11材質，外層是PA材質 | ||
| W | 外層為纏繞層 | ||
SPIR STAR高壓軟管應用行業：
| 水清洗行業 | 鋼絲層數為2/4/6/8層，H系列和WR系列以及UHP系列 應用于液壓行業的軟管 |
|---|---|
| 液壓行業 | 鋼絲層數為2/4/6層，W系列和WL系列以及HL系列和M系列 |
| 油氣行業 | 鋼絲層數為4或6層，W系列、M系列、PPA系列以及HT系列 |
SPIR STAR產品代號示意圖：
超高壓閥件
SPIR STAR超高壓閥件，適用于油氣及液壓行業，可用液體及氣體介質。閥體采用V4A不銹鋼材質冷成型，以適應該行業對高溫及高壓的特殊要求。
SPIR STAR超高壓閥件品種包括針閥、球閥及單向閥等，并且可以滿足客戶對不同螺紋類型的要求。最大工作壓力可達4,140 bar。
客戶也可根據需要選擇閥件維修包及不銹鋼手柄。
超高壓閥件的螺紋形式包含NPT-、MP-和HP-。
針閥有2路、3路直管閥及角閥；
止回閥可帶O型圈（軟閥座）或球形閥座。
| 類型 | 最大壓力 |
|---|---|
| 直通針閥 | 4.140 bar |
| 直通球閥 | 1.380 bar |
| 止回閥 | 4.140 bar |
超高壓過渡接頭和硬管 - 確?？旖莅踩倪B接
SPIR STAR超高壓過渡接頭和硬管，主要用于油氣、液壓和水清洗行業，適用于液體和氣體介質。
所有的過渡接頭和硬管都采用V4A不銹鋼材質冷成型，以適應該行業對高溫及高壓的特殊要求。
超高壓過渡接頭和硬管，工作壓力為690-4,140 bar，適用于多種螺紋形式。
標準的螺紋形式包括：
- JIC
- NPT
- Medium Pressure (MP) 中壓
- High Pressure (HP) 高壓
- Type M
- Sealing cones (metric & inch) 密封錐度（公制或英制）
連接形式：
外螺紋 x 外螺紋
內螺紋 x 內螺紋
內螺紋 x 外螺紋
超高壓快接
多種快接型號可供選擇，最大工作壓力可達2,070 bar
SPIR STAR的快接產品可以滿足各種行業的各種型號需求。
產品類型：
- 螺旋式連接/斷開（不含止回閥）
- 螺旋式連接/斷開（含止回閥）- 液壓行業
- 快接（不含止回閥）- 水清洗行業
- SPC快接，含止回閥，內螺紋
- SPC快接，含止回閥
- SPC快接，不含止回閥
| 高壓專家 |
|---|
| 軟管/快接/閥門/高壓系統 |
| SPIR STAR一直致力于制造高壓軟管，工作壓力從400到4，000bar,作為高壓行業的先驅者，SPIR STAR通過增加高壓閥門、高壓系統、管道等來擴展他們的產品組合。 |
| 所有閥門、高壓轉接、高壓系統、管道都已經被開發出來，適用于油氣液壓等工業中，適用介質可以是液體或者氣體等。標準的SPIR STAR VFT產品時由冷加工不銹鋼制成，以適應高溫和高壓的應用。 |
| 為了滿足所有客戶的要求，SPIR STAR高壓閥門、高壓系統、管道的壓力范圍已經達到690-10，340bar（10，000-150，000psi）以滿足各行業的需求。 |
| Specialists in High Pressure |
|---|
| Hose/Fittings/Adapters/Quick Disconnects/Valves |
| Pressures ranging from 400 to 4,000 bar ,As a reliable partner of the high-pressure sectorSPIR STAR? extend their product portfolio by adding high-pressure valves, adapters, tubes and couplers. |
| All valves, adapters and tubes (VFT) as well as the couplers have been developed especially for applications with liquid or gaseous media in the Oil & Gas, the Hydraulic or the Waterblast industries. SPIR STAR? VFT products standardly are made of cold-worked stainless steel to cope with the high temperatures and pressures typical for these applications. |
| SPIR STAR? valves, adapters, tubes and couplers are available with various connection threads and sizes withinthe pressure range from 690 to 10,340 bar (10,000 to 150,000 psi) in order to meet all customer requirements. |

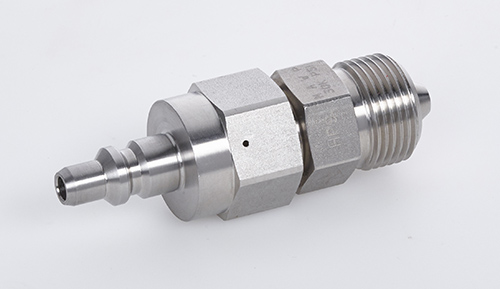

Quick Disconnect Male Nipples with Check Valve
| Part Number | Description | Max Pressure |
|---|---|---|
| SPC600-2-HP4 | Nipple with Check Valve x 1/4” HP Male | 2.070 bar / 30.000 psi |
| SPC600-2-HP6 | Nipple with Check Valve x 3/8” HP Male | 2.070 bar / 30.000 psi |
| SPC600-2-HP9 | Nipple with Check Valve x 9/16” HP Male | 2.070 bar / 30.000 psi |
| SPC600-2-MP4 | Nipple with Check Valve x 1/4” MP Male | 1.380 bar / 20.000 psi |
| SPC600-2-MP6 | Nipple with Check Valve x 3/8” MP Male | 1.380 bar / 20.000 psi |
| SPC600-2-MP9 | Nipple with Check Valve x 9/16” MP Male | 1.380 bar / 20.000 psi |
| SPC600-2-NM4 | Nipple with Check Valve x 1/4” NPT Male | 1.035 bar / 15.000 psi |
| SPC600-2-NM6 | Nipple with Check Valve x 3/8” NPT Male | 1.035 bar / 15.000 psi |
| SPC600-2-NM8 | Nipple with Check Valve x 1/2” NPT Male | 1.035 bar / 15.000 psi |
| SPC600-2-NF4 | Nipple with Check Valve x 1/4” NPT Female | 1.035 bar / 15.000 psi |
| SPC600-2-NF6 | Nipple with Check Valve x 3/8” NPT Female | 1.035 bar / 15.000 psi |
| SPC600-2-NF8 | Nipple with Check Valve x 1/2” NPT Female | 1.035 bar / 15.000 psi |
| SPC600-2-MJ4 | Nipple with Check Valve x 1/4” JIC Male | 1.035 bar / 15.000 psi |
| SPC600-2-MJ6 | Nipple with Check Valve x 3/8” JIC Male | 1.035 bar / 15.000 psi |
| SPC600-2-MJ8 | Nipple with Check Valve x 1/2” JIC Male | 1.035 bar / 15.000 psi |
| SPC600-2-M9 | Nipple with Check Valve x 9/16”-18 Type M Male | 2.070 bar / 30.000 psi |
| SPC600-2-M12 | Nipple with Check Valve x 3/4”-16 Type M Male | 2.070 bar / 30.000 psi |
| SPC600-2-M14 | Nipple with Check Valve x 7/8”-14 Type M Male | 2.070 bar / 30.000 psi |
| SPC600-2-M16 | Nipple with Check Valve x 1”-12 Type M Male | 2.070 bar / 30.000 psi |

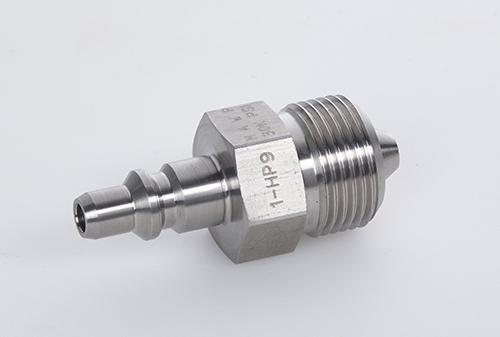

Quick Disconnect Male Nipples without Check Valve
| Part Number | Description | Max Pressure |
|---|---|---|
| SPC600-1-HP4 | Nipple without Check Valve x 1/4” HP Male | 2.070 bar / 30.000 psi |
| SPC600-1-HP6 | Nipple without Check Valve x 3/8” HP Male | 2.070 bar / 30.000 psi |
| SPC600-1-HP9 | Nipple without Check Valve x 9/16” HP Male | 2.070 bar / 30.000 psi |
| SPC600-1-HF4 | Nipple without Check Valve x 1/4” HP Female | 2.070 bar / 30.000 psi |
| SPC600-1-HF6 | Nipple without Check Valve x 3/8” HP Female | 2.070 bar / 30.000 psi |
| SPC600-1-HF9 | Nipple without Check Valve x 9/16” HP Female | 2.070 bar / 30.000 psi |
| SPC600-1-MP4 | Nipple without Check Valve x 1/4” MP Male | 1.380 bar / 20.000 psi |
| SPC600-1-MP6 | Nipple without Check Valve x 3/8” MP Male | 1.380 bar / 20.000 psi |
| SPC600-1-MP9 | Nipple without Check Valve x 9/16” MP Male | 1.380 bar / 20.000 psi |
| SPC600-1-MP12 | Nipple without Check Valve x 3/4” MP Male | 1.380 bar / 20.000 psi |
| SPC600-1-MP16 | Nipple without Check Valve x 1” MP Male | 1.380 bar / 20.000 psi |
| SPC600-1-MF4 | Nipple without Check Valve x 1/4” MP Female | 1.380 bar / 20.000 psi |
| SPC600-1-MF6 | Nipple without Check Valve x 3/8” MP Female | 1.380 bar / 20.000 psi |
| SPC600-1-MF9 | Nipple without Check Valve x 9/16” MP Female | 1.380 bar / 20.000 psi |
| SPC600-1-NM4 | Nipple without Check Valve x 1/4” NPT Male | 1.035 bar / 15.000 psi |
| SPC600-1-NM6 | Nipple without Check Valve x 3/8” NPT Male | 1.035 bar / 15.000 psi |
| SPC600-1-NM8 | Nipple without Check Valve x 1/2” NPT Male | 1.035 bar / 15.000 psi |
| SPC600-1-NF4 | Nipple without Check Valve x 1/4” NPT Female | 1.035 bar / 15.000 psi |
| SPC600-1-NF6 | Nipple without Check Valve x 3/8” NPT Female | 1.035 bar / 15.000 psi |
| SPC600-1-NF8 | Nipple without Check Valve x 1/2” NPT Female | 1.035 bar / 15.000 psi |
| SPC600-1-MJ4 | Nipple without Check Valve x 1/4” JIC Male | 1.035 bar / 15.000 psi |
| SPC600-1-MJ6 | Nipple without Check Valve x 3/8” JIC Male | 1.035 bar / 15.000 psi |
| SPC600-1-MJ8 | Nipple without Check Valve x 1/2” JIC Male | 1.035 bar / 15.000 psi |
| SPC600-1-M12 | Nipple without Check Valve x 3/4”-16 Type M Male | 2.070 bar / 30.000 psi |
| SPC600-1-M9 | Nipple without Check Valve x 9/16”-18 Type M Male | 2.070 bar / 30.000 psi |
| SPC600-1-M16 | Nipple without Check Valve x 1”-12 Type M Male | 2.070 bar / 30.000 psi |
